LCY4N01A | Full-frequency GNSS Geodetic Antenna

Product Description

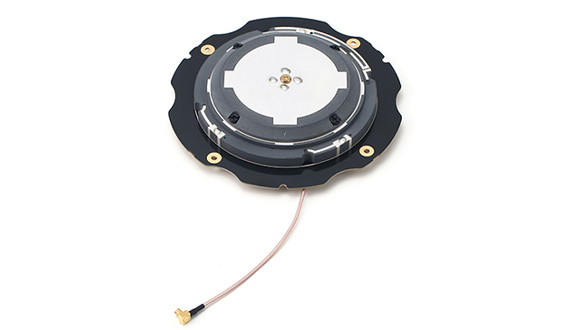

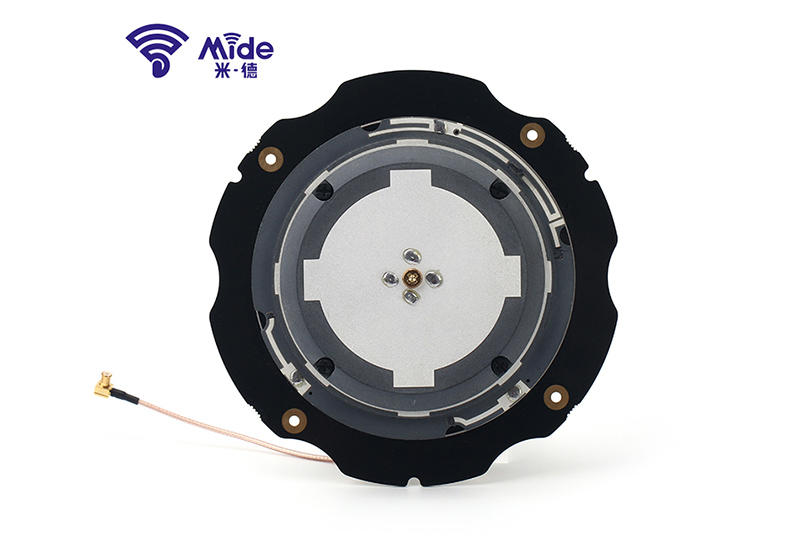

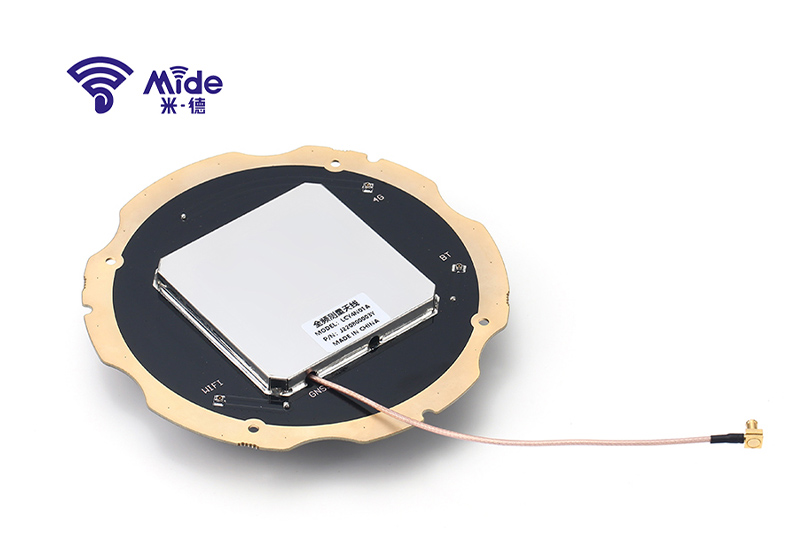

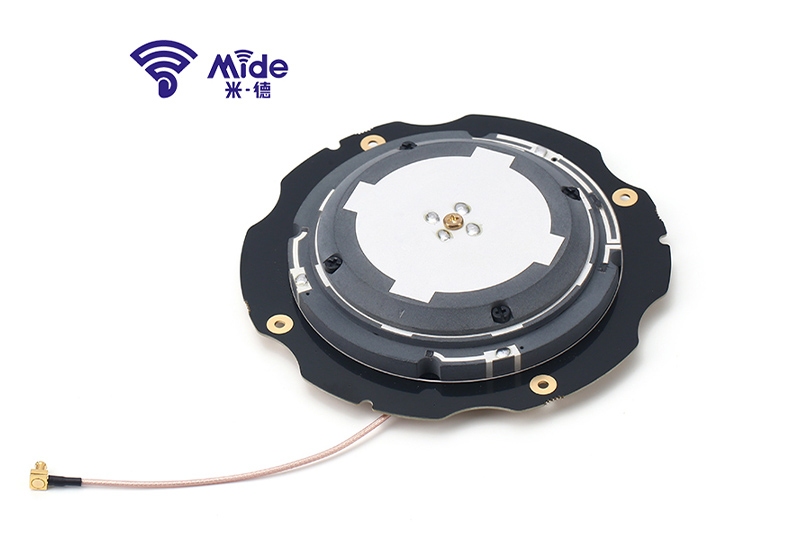

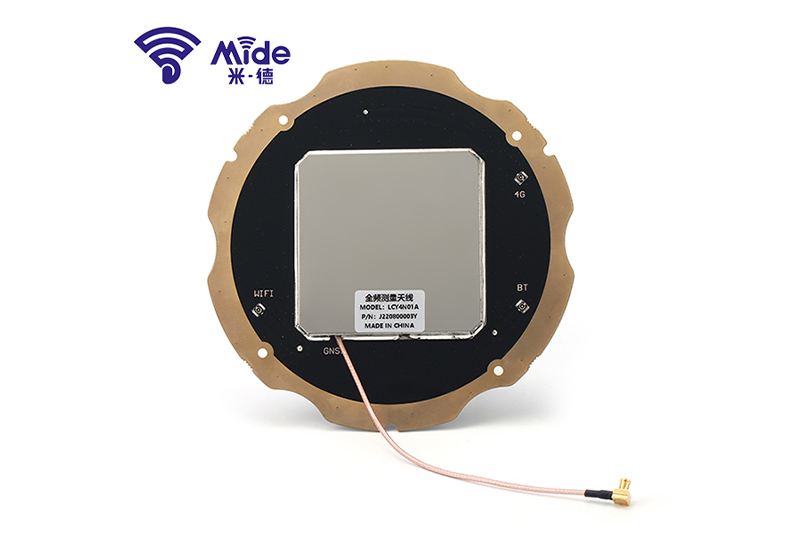

Geodetic Antenna LCY4N01A

The LCY4N01A is a four-star full-frequency geodetic GNSS antenna that can be used with various satellite navigation receivers. It supports GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, GALILEO E1/E2/E5a/E5b, as well as Bluetooth, WIFI, and 4G signal reception. This antenna is widely used in geodetic mapping, navigation channel mapping, precision agriculture, marine surveying, and other fields, and it can also be utilized in military applications depending on the conditions.

Product Features

Product Advantages

Support the GPS L1 / L2 / L5 BDS B1/B2/B3 GLONASS L1/L2 GALILEO E1/E2/E5a/E5b Bluetooth, WIFI, 4G signal reception

Adopts multi-feed point design, ensures the performance of right-hand circular polarization and phase center, reduces the influence of measurement error.

Stable phase center guarantees the accuracy of positioning within millimeter-level

High gain, miniaturization, high sensitivity, high reliability, multi-system compatibility

Specifications

Antenna
Frequency Range（MHz）	GPS L1/L2/L5 GLONASS L1/L2 BD B1/B2/B3 GALILEO E1/E2/E5a/E5b Bluetooth WIFI 4G
VSWR	＜2.0
Maximum Gain（dBi）	5.5
Antenna AR （dB）	≤3.0
Azimuth Coverage（°）	360°
Phase Center Error（mm）	±2
Polarization	RHCP
Port Impedance（Ω）	50Ω

LNA
LNA Gain（dB）	40±2
Band flatness（dB）	±2
Noise Figure	≤2.0
VSWR	≤2.0
Operating Voltage（V）	3.3-12 VDC
Operating Current（mA）	≤45mA

Physical
Connector Type	MCX-C-JW1.5
Antenna size（mm）	Φ135×26mm
Antenna Weight(g)	≤200g
Operating Temperature（℃）	-40-+70 ℃
Storage Temperature（℃）	-55-+85 ℃
Humidity	95% No Condensation
