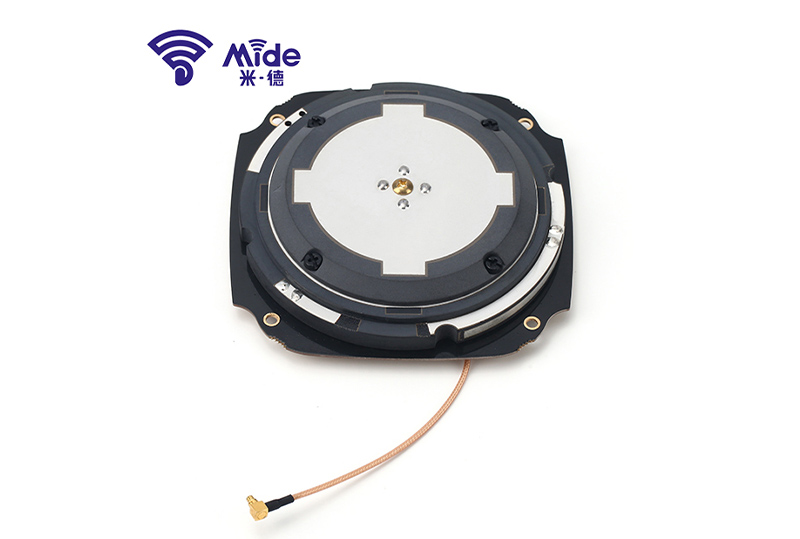

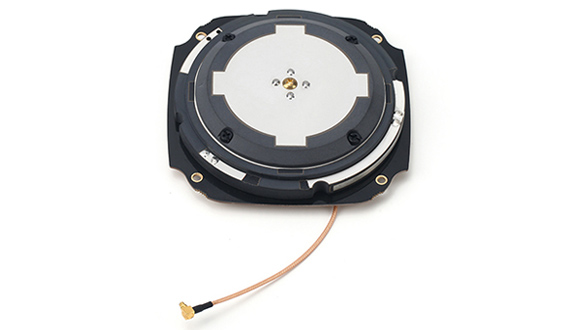

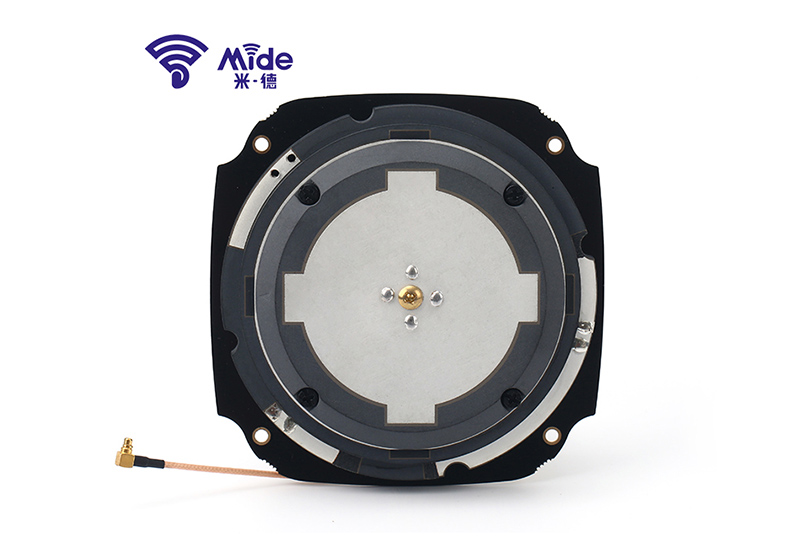

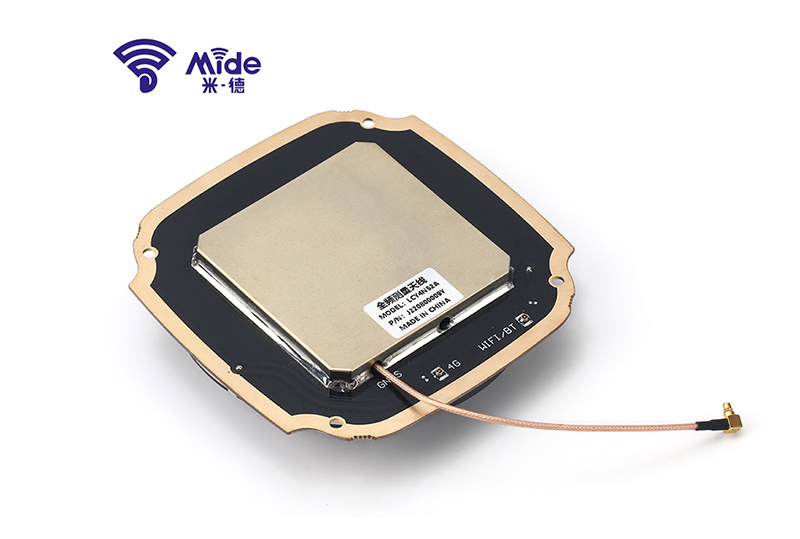

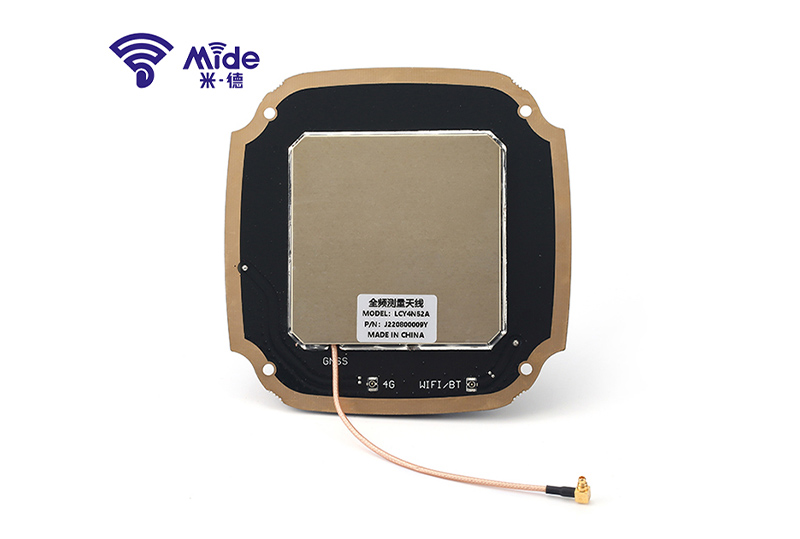

Geodetic Antenna LCY4N52A

LCY4N52A is a built-in four-star full-frequency measurement antenna, which can be used with a variety of receivers. It is widely used in geodesic mapping, navigation channel mapping, precision agriculture, Marine surveying and other fields, and can also be used in the military field according to the application conditions

Product Features

Product Advantages

Support GPS L1 / L2 / L5 / L_Band GLONASS L1/L2/L3 BDS B1/B2/B3 GALILEO E1/ E5a/E5b/E6 BT/WIFI Mobile communication 4G signal reception

Robust low-elevation satellite tracking

Adopts multi-feed point design, ensures the performance of right-hand circular polarization and phase center, reduces the influence of measurement error.

High gain, miniaturization, high sensitivity, multi-system compatibility and high reliability

Specifications

Antenna
Frequency Range（MHz）	GPS L1/L2/L5L_band GLONASS L1/L2/L3 BD B1/B2/B3 GALILEO E1/E2/E5a/E5b/E6 BT/WIFI/4G
VSWR	＜2.0
Maximum Gain（dBi）	5.5
Antenna AR （dB）	≤3.0
Azimuth Coverage（°）	360°
Phase Center Error（mm）	±2
Polarization	RHCP
Port Impedance（Ω）	50Ω

LNA
LNA Gain（dB）	45±2
Band flatness（dB）	±2
Noise Figure	≤2.0
VSWR	≤2.0
Operating Voltage（V）	3.3-12 VDC
Operating Current（mA）	≤45mA

Physical
Connector Type	MMCX-K
Antenna size（mm）	Φ110×110×24.5mm
Antenna Weight(g)	≤280g
Operating Temperature（℃）	-40-+70 ℃
Storage Temperature（℃）	-55-+85 ℃
Humidity	95% No Condensation
