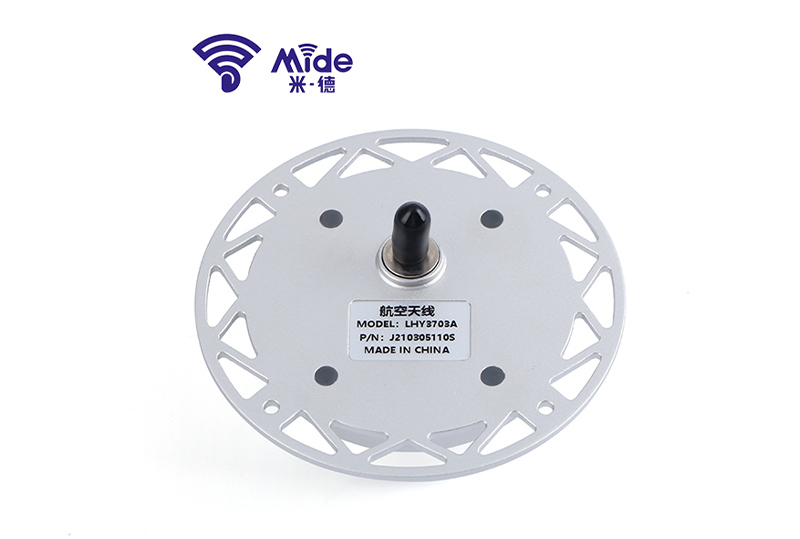

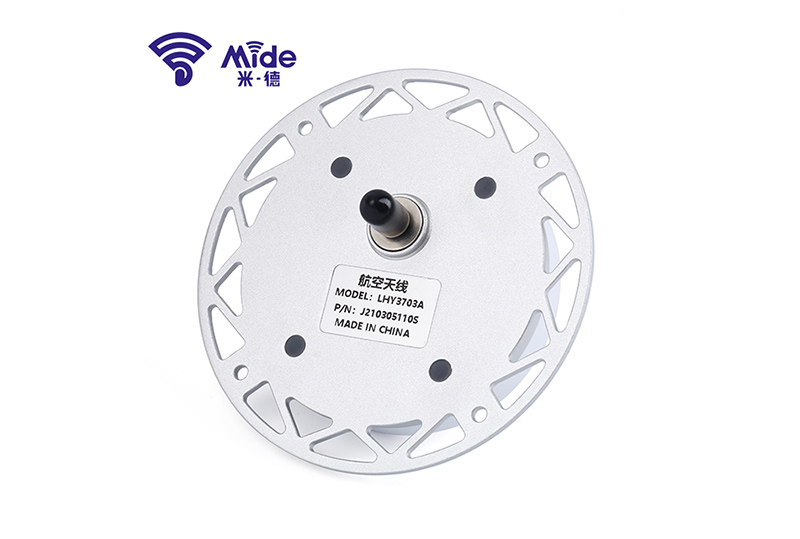

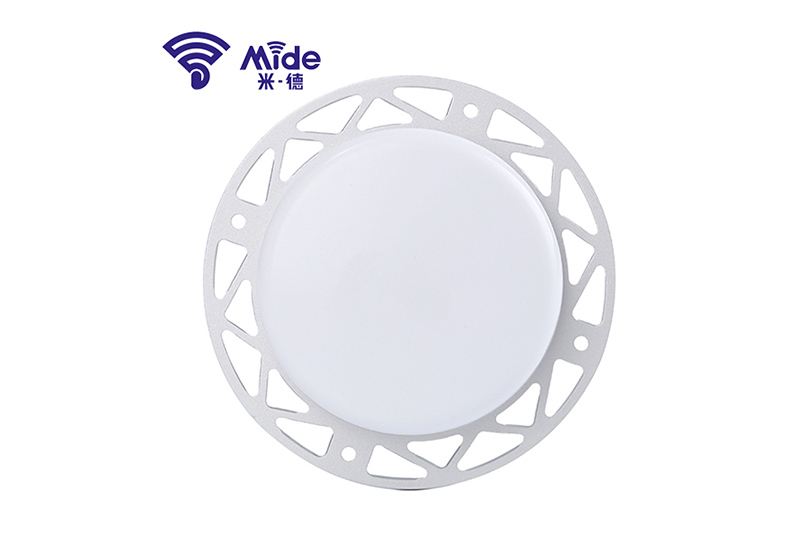

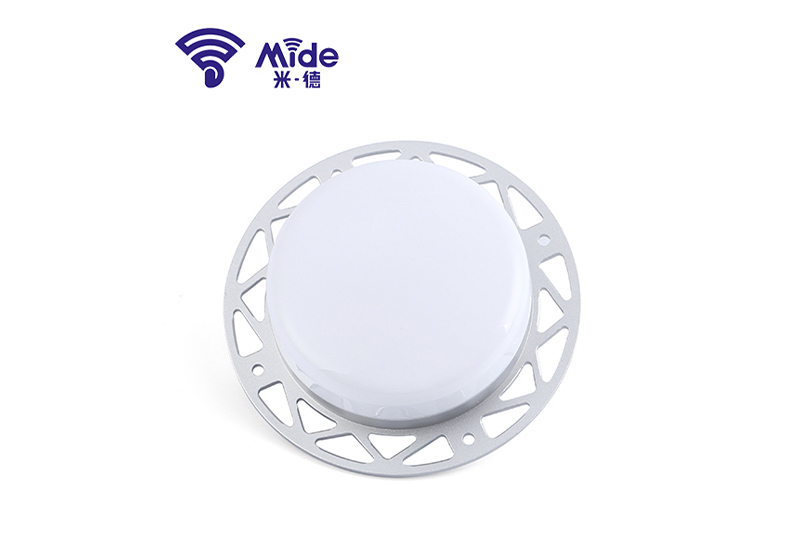

Aviation Antenna LHY3703A

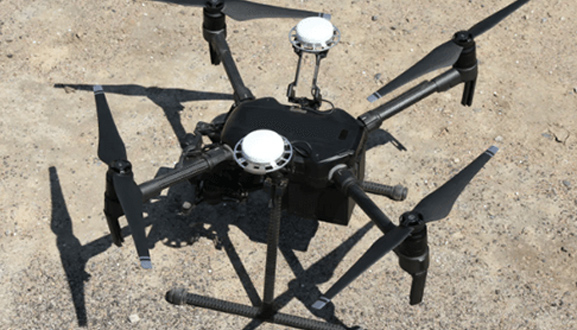

LHY3703A is a kind of antenna with high gain, low wind resistance, small size, beautiful appearance and high sensitivity. Can be used with a variety of receivers, widely used in navigation scheduling, tracking monitoring and other fields. It is especially suitable for high precision applications of high speed mobile carriers and vehicles such as civil uav.

Product Features

Product Advantages

Small size, light weight, reliable structure

Low power consumption, high sensitivity, high reliability

It can be used with a variety of satellite navigation receivers to meet the requirements of mobile carrier positioning and speed measurement in high dynamic environment

It can be tracked in complex environment to provide higher accuracy and reliable data for the positioning system

Specifications

Antenna
Frequency Range（MHz）	BD B1/B2/B3 GPS L1/L2 GLONASS L1/L2
Maximum Gain（dBi）	4
Antenna AR （dB）	≤3.0（elevation angle 90°）
VSWR（Passive Antenna ）	≤2.0
Polarization	RHCP
Port Impedance（Ω）	50Ω

LNA
LNA Gain（dB）	35±2
Noise Figure	≤2.0
In-band Flatness（dB）	±2
VSWR（Active Antenna）	≤2.0
Operating Voltage（V）	3.3-12 VDC
Operating Current（mA）	≤45mA

Physical
Connector Type	SMA-K（Can be customized）
Antenna Size（mm）	Φ90*26mm（Without Connector）
Antenna Weight(g)	≤120g
Operating Temperature（℃）	-45-+85 ℃
Storage Temperature（℃）	-55-+85 ℃
Relative Humidity	95%
