Full frequency 3D Choke ring antenna LNY4N01A
Full frequency 3D Choke ring antenna LNY4N01A
Full frequency 3D Choke ring antenna LNY4N01A
Full frequency 3D Choke ring antenna LNY4N01A
Full frequency 3D Choke ring antenna LNY4N01A

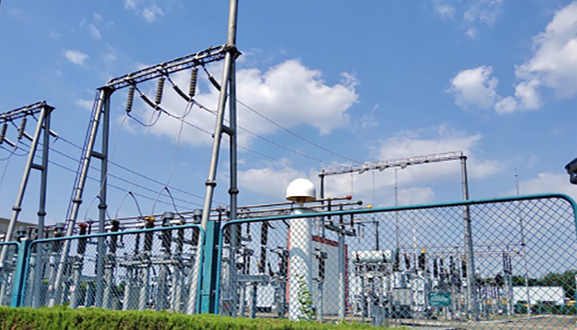

Product Description
LNY4N01A is a high performance GNSS antenna for base station that can track GPS, GLONASS, BeiDou, BeiDou Global and Galileo，which can meet the requirements of high precision and multi-system compatibility of measurement equipment. The choke ring GPS antenna phase center of this product has high stability and high positioning accuracy. And this antenna have specially designed filters that reduce multi-path signals in the L1 and L2 bands of the same antenna configuration.
Product Features
Product Advantages
3D chock ring structure design with excellent multipath rejection capability
Sub-millimeter level phase center error with outstanding stability and repeatability
Superior IP68 waterproof and dustproof level make it capable for work in harsh environment
Mini design with Ruggedization and Durability
Specifications
| Antenna | |
| Frequency Range（MHz） | BD B1/B2/B3 GPS L1/L2/L5 GLONASS L1/L2 Galileo E1/E2/E5a/E5b |
| Maximum Gain（dBi） | 6 |
| Output Voltage VSWR | ≤2.0 |
| Antenna AR （dB） | ≤3.0 |
| Phase Center Error（mm） | ±1 |
| Polarization | RHCP |
| Port Impedance（Ω） | 50Ω |
| LNA | |
| LNA Gain（dB） | 50±2 |
| Noise Figure | ≤2.0 |
| Input and Output Voltage VSWR | ≤2.0 |
| In-band Flatness（dB） | ±2 |
| Differential Delay（ns） | ≤5 |
| Operating Voltage（V） | 3.3-12 VDC |
| Operating Current（mA） | ≤50 mA |
| Physical | |
| Connector Type | TNC-K |
| Antenna size（mm） | Φ379.5×296.5mm |
| Waterproof Level | IP67 |
| Operating Temperature（℃） | -45-+85 ℃ |
| Storage Temperature（℃） | -55-+85 ℃ |
| Humidity | 95% No Condensing |
