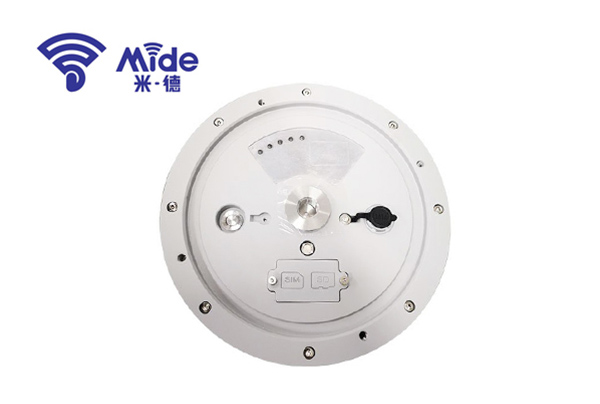

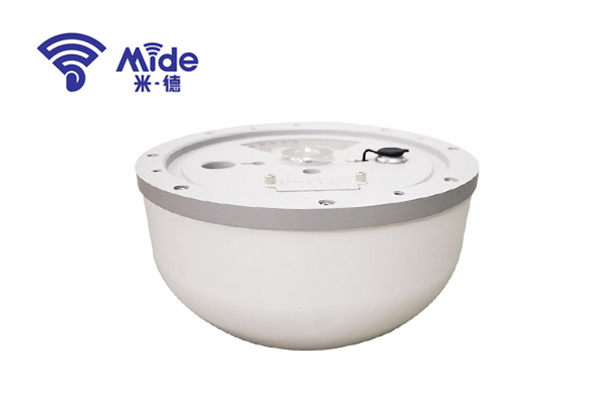

GNSS Receiver X200R
GNSS Receiver X200R
GNSS Receiver X200R
Product Description
GNSS Receiver X200R
X200R is a highly integrated receiver with built-in high-precision positioning board, which can realize high-precision positioning function. The built-in 4G module of the receiver can easily realize equipment networking and transmit data to the remote server.
Product Features
Product Features
Highly integrated,Integrated design simplifies installation process.
Supports firmware upgrade and can be connected to external sensors.
Multi-system and multi-frequency high-precision satellite antenna and board are used to provide high-quality original data to the server.
Built-in Bluetooth module can realize wireless configuration of data.
Specifications
| Antenna | |
| Frequency Range（MHz） | GPS: L1, L1C, L2C, L2P, L5 BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b GLONASS: G1, G2, G3 Galileo: E1, E5a, E5b, E6C QZSS: L1, L2C, L5 SBAS: L1 |
| RTK | Frequency: Maximum 20HZ Lock Time：< 10 sec |
| Direction Finding Accuracy | 0.2 degrees/1m baseline |
| Positioning Accuracy | Single Point Positioning;1.5m CEP RTK:0.02m + 1ppm CEP |
| Speed Accuracy(RMS) | 0.03m/s |
| Data Rate (max) | 20Hz |
| Structural | |
| Antenna Size（mm） | Φ199×131mm |
| Weight | about 3kg |
| Radio Antenna Interface | TNC（Female） |
| Waterproof and Dustproof Grade | IP67 |
| Operating Voltage | 9~30V |
| Power Consumption (typ.) | Built-in radio (4W): 12V DC Built-in 4G module (5W): 12V DC |
| Operating Environment | |
| Operating Temperature（℃） | -20-+85 ℃ |
| Storage Temperature（℃） | -40-+85 ℃ |
| Humidity | 95% No Condensing |
