Industries

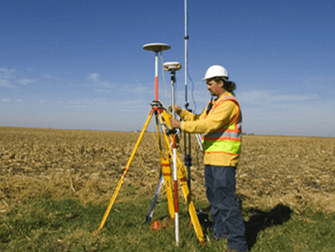

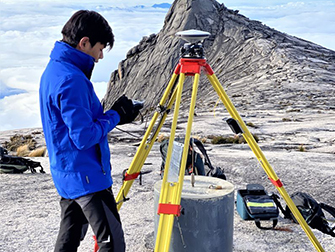

Survey Mapping & Geodetic is a professional field that involves the precise measurement, representation, and management of spatial data for land, infrastructure, and geographical studies. Using advanced Global Navigation Satellite System (GNSS) technology, Survey Mapping & Geodetic ensures high accuracy and reliability in capturing geospatial data for various applications such as boundary determination, urban planning, and geodetic research.
Geodetic antenna has the ability of multi-satellite system navigation and positioning, and can receive various types of navigation system full-band signals. Using unique geodetic grade techniques, the phase center is stable, which provides excellent anti-multipath interference ability and ensures the sensitivity of receiving satellite signals. It is able to receive low elevation signals with high gain and wide beam width makes it an excellent choice for tracking visible satellites under challenging conditions, providing the positioning solutions with precision and reliable data. GNSS geodetic grade antenna can be widely used in agriculture tractors, unmanned vessels, also for autonomy vehicles, GIS surveying where high precision operations are needed. Mide, as a professional manufacturer and supplier of geodetic grade antennas, provides geodetic grade GPS/GNSS antennas, equipment, technology, etc.
With the rapid development of the city, the task of cleaning roads and public facilities is increasing, and the requirements for the mechanization of municipal and environmental sanitation operations are becoming higher and higher. The unmanned sweeper not only has the characteristics of high efficiency, environmental protection and labor cost saving, but also realizes centimeter level high-precision positioning by establishing a reference station and using RTK difference technology. It can carry out path planning. The control center controls the sweeper to carry out fully automated 24-hour operation according to the planned path, greatly reducing the workload of sanitation workers. This is the most important application of GNSS geodetic grade antennas.
Survey Mapping & Geodetic
External surveying and mapping antenna
GNSS Receiver
External surveying and mapping antenna
The features for the survey antenna:
1. Top performance in challenging environments with high-accuracy, survey grade positioning
2. Multi-frequency multi-constellation Goverage, superior multi-path rejection performance
3. Range of sizes from small form to mid-sized to suit almost every application
4. Embedded options available, easy to integrate GNSS rover & base receiver
5. Customizable in precision, cables, connectors and installation
Related Products
Four-star full-frequency Survey GNSS antenna LCY4N01A
LCY4N01A has the characteristics of high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, which can effectively meet the needs of users.
Multipath Rejection Built-in Geodetic GNSS Antenna LCY4N03A
Multipath Rejection Built-in Geodetic Antenna LCY4N03A is widely used in geodetic survey, bridge construction, ocean survey, underwater terrain survey, base station, etc.
External Survey GNSS antenna LCY4N08A
Geodetic Antenna LCY4N08A features a multi-point feeding design to achieve greater phase center stability. It effectively improves measurement accuracy and provides better RTK solution. And has passed the international NGS certificate test.
Built-in four-star Multi-band Measurement Antenna LCY4N52A
LCY4N52A is a built-in four-star built-in multi-band measurement antenna, which can be used with a variety of receivers. It is widely used in geodesic mapping, navigation channel mapping, precision agriculture, Marine surveying and other fields, and can also be used in the military field.
High gain Geodetic Antenna LCY4N54A
LCY4N54A adopts multi-feed point design scheme to achieve phase center and geometric center coincidence, full frequency coverage, multi-system compatibility.
Low-elevation satellite tracking Survey GNSS Antenna LCY4N57A
LCY4N57A is a four-star full-frequency measurement antenna, which can be used with a variety of satellite navigation receivers to effectively meet the needs of users.
Smart GNSS Geodetic Antenna LCY3703A
The LCY3703A is a smart GNSS geodetic antenna that excels in satellite signal tracking, supporting Beidou, GPS, and GLONASS signals. Designed for high precision and multi-constellation compatibility, it can be used with various receivers in diverse applications, including mobile mapping and precision agriculture.
Built-in Surveying GNSS Antenna LCY3850A
LCY3850A has the characteristics of high gain, low profile, high sensitivity, multi-system compatibility and high reliability, which can effectively meet the needs of users.
GNSS UAV/HELIX Antenna LSY4N12A
LSY4N12A is a four-star full frequency spiral antenna, which has the characteristics of small size, high positioning accuracy and light weight.
Full-frequency GNSS helical antenna LSY4N13A
LSY4N13A is a high-precision GNSS spiral antenna, which is widely used in unmanned driving, handheld terminal equipment and small RTK equipment.
