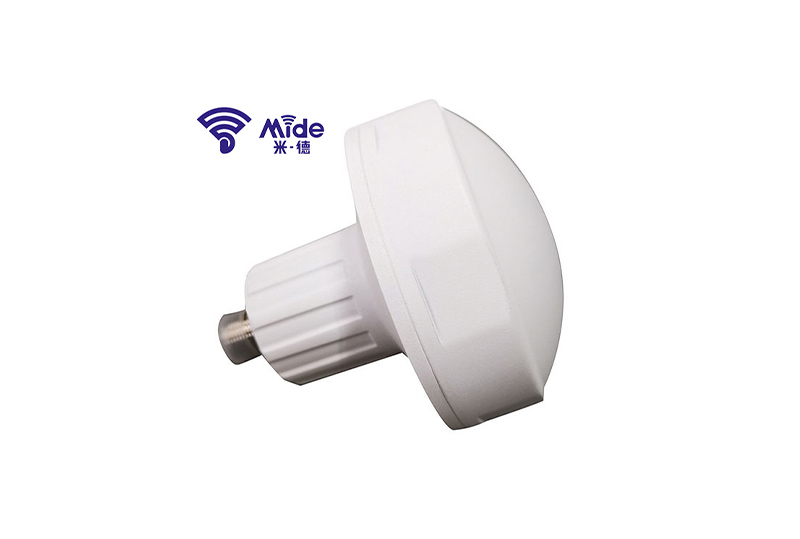

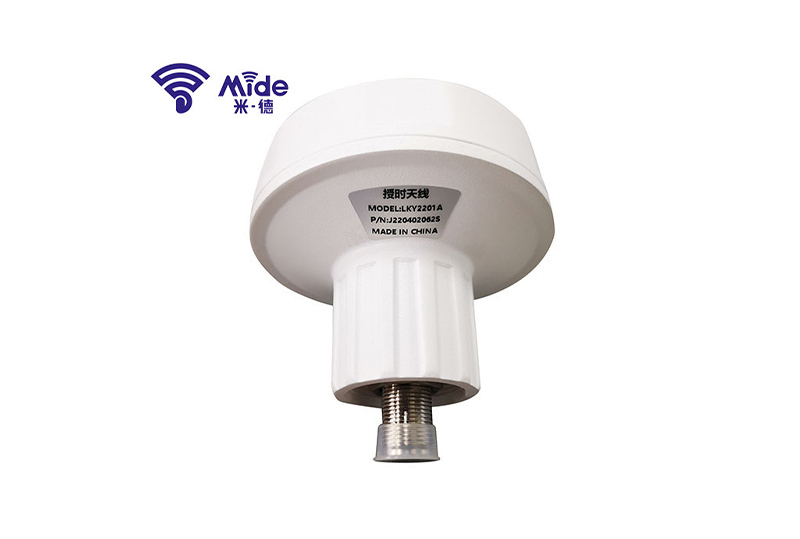

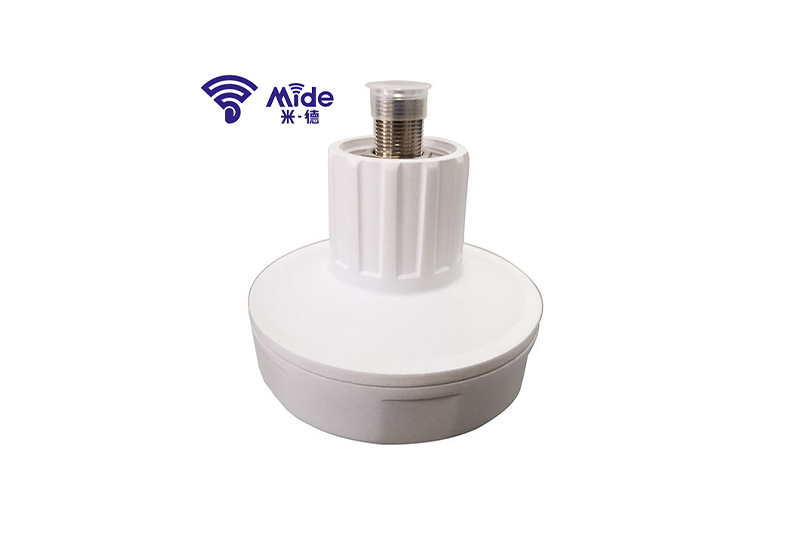

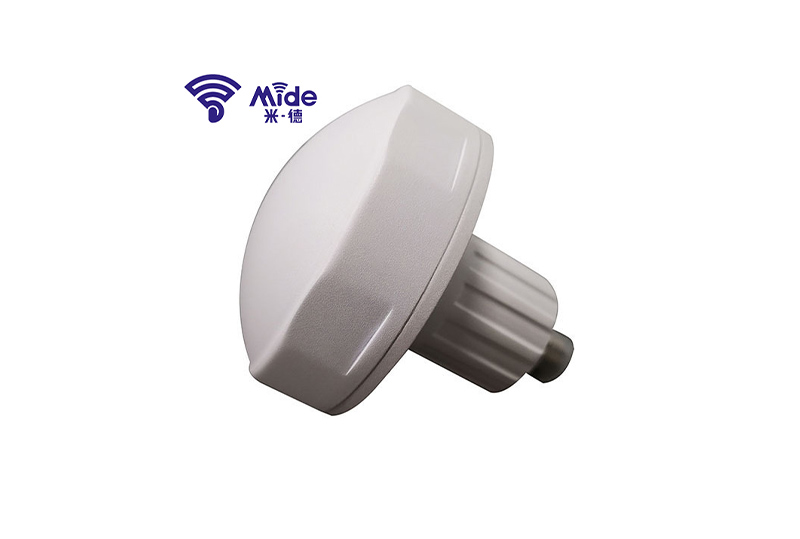

Mushroom GPS Timing Antenna LKY2201A
Mushroom GPS Timing Antenna LKY2201A
Mushroom GPS Timing Antenna LKY2201A
Mushroom GPS Timing Antenna LKY2201A
Mushroom GPS Timing Antenna LKY2201A
Product Description
LKY2201A is an integrated timing antenna that provides precise clock signals,recovers timing and positioning data for timing reference and phase synchronization.It mainly solves the signal reception problem of crowded base stations with serious interference problems.
Product Features
Product Advantages
Wideband coverage and time synchronization
High quality with industry-leading out-of-band rejection
Superior out-of-band rejection – Proprietary filtering design allows wideband coverage for all GNSS frequencies
High performance – 40 dB LNA gain; low noise < 2.5 dB
Specifications
| Antenna | |
| Frequency Range（MHz） | 1559-1606MHz |
| Maximum Gain（dBi） | 4.0 |
| Antenna AR （dB） | ≤3.0 |
| VSWR | ≤1.8 |
| Polarization | RHCP |
| Port Impedance（Ω） | 50Ω |
| LNA Performance | |
| LNA Gain（dB） | 40±4 |
| Noise Figure（dB） | ≤2.5 |
| Operating Voltage（V） | 3.3～12VDC |
| Operating Current（mA） | ≤30mA@5V |
| Physical | |
| Connector Type | N-K |
| Antenna size（mm） | Φ95×89mm（Without Connector） |
| Lightning Protection Performance | Built-in lightning protection tube. During installation, external lightning protection cables are required to be installed outdoors to prevent current damage to base station equipment when the cables are struck by lightning. |
| Operating Temperature（℃） | -40-+70 ℃ |
| Storage Temperature（℃） | -55-+85 ℃ |
