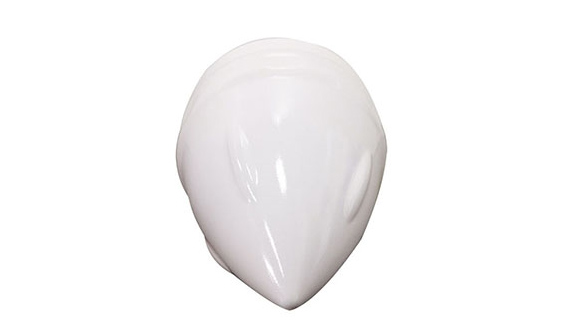

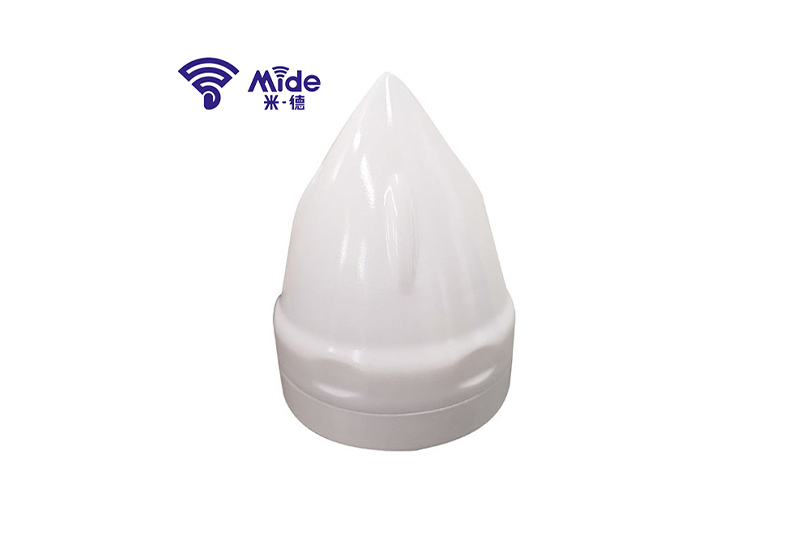

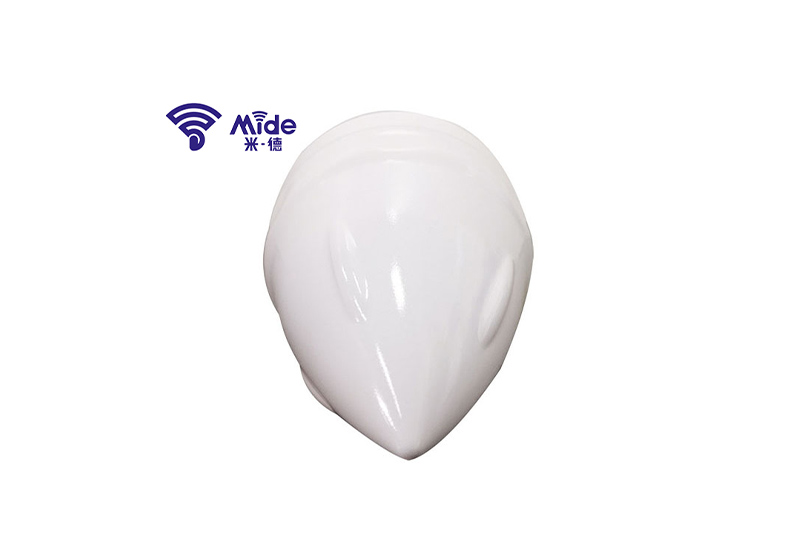

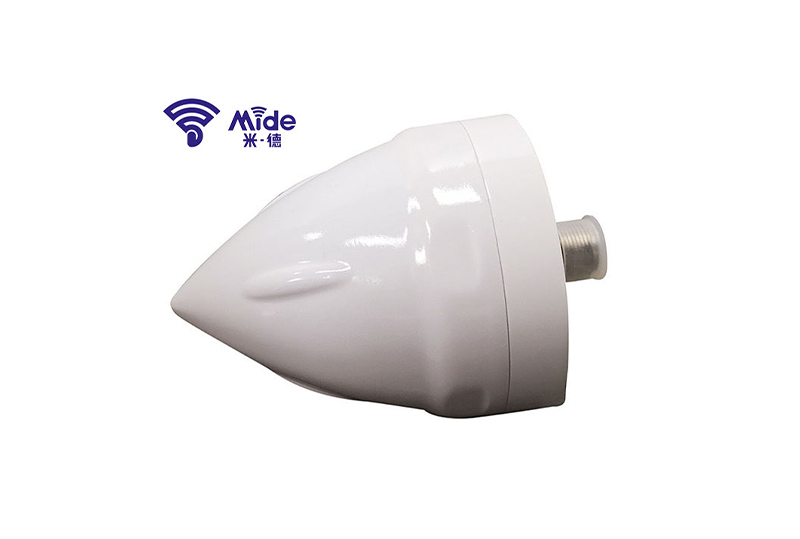

40 dB GPS/GLONASS/GALILEO Timing Antenna
40 dB GPS/GLONASS/GALILEO Timing Antenna
40 dB GPS/GLONASS/GALILEO Timing Antenna
40 dB GPS/GLONASS/GALILEO Timing Antenna
40 dB GPS/GLONASS/GALILEO Timing Antenna
Product Description
LKY2202A 40 dB GPS/GLONASS/GALILEO Timing Antenna is an integrated timing antenna that provides precise clock signals. The antenna integrates a timing module, which can meet the needs of the current integrated timing design of communication base station equipment. Timing antennas can provide precise clock signals for base stations, power equipment, navigation, etc.
Product Features
Product Advantages
Supports 1159～1606MHz, GPS L1, Galileo G1 signal reception
Trouble-free deployments in congested cell-site applications
Powerful attenuation mitigation,via low noise, high gain amplifier, multi-stage filtering, superior out-of-band rejection and lower elevation pattern performance
Designed for safety, with transient voltage suppression and protection from reverse polarity and electrostatic discharge (ESD)
Protection from the elements, Unique radome shape prevents water, ice and bird perching issues
Specifications
| Antenna | |
| Frequency Range（MHz） | 1159～1610.5 Frequency coverage GPS L1 and Galileo G1 |
| Gain（dBi） | ≥4 |
| Horizontal Beam Width （°） | 360° |
| Vertical Beam Width （°） | 105° |
| Antenna AR （dB） | ≤3.0 |
| Polarization | RHCP |
| Port Impedance（Ω） | 50Ω |
| LNA Performance | |
| Frequency Range（MHz） | 1559～1606 |
| LNA Gain（dB） | 31±2 |
| Noise Figure（dB） | ≤2.0 @-40℃～+85℃ |
| VSWR | ≤1.8 |
| Operating Voltage（V） | 5±1.5 DC |
| Operating Current（mA） | ≤35 @5V |
| Physical | |

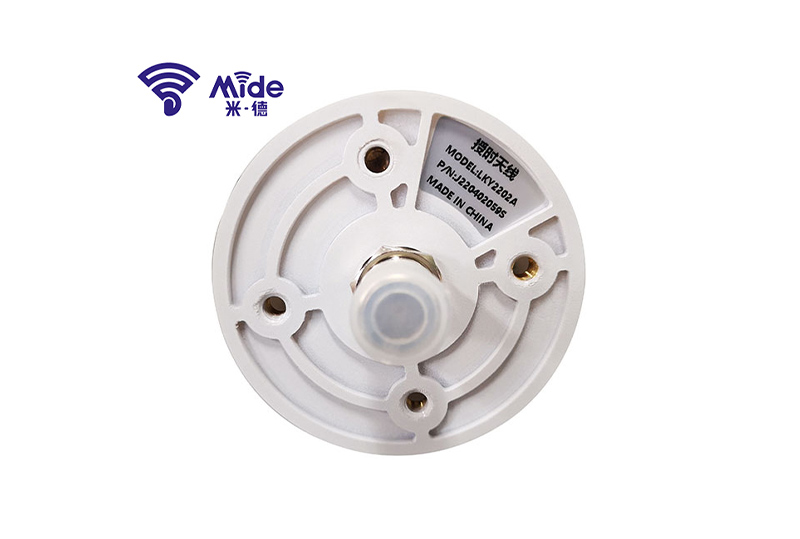

| Connector Type | N-K |
| Antenna size（mm） | Φ82×100mm（Without Connector） |
| Antenna Weight（g） | ≤600 g |
| Operating Temperature（℃） | -40-+85 ℃ |
| Storage Temperature（℃） | -55-+85 ℃ |
| Relative Humidity | 95% （Non-condensing） |
