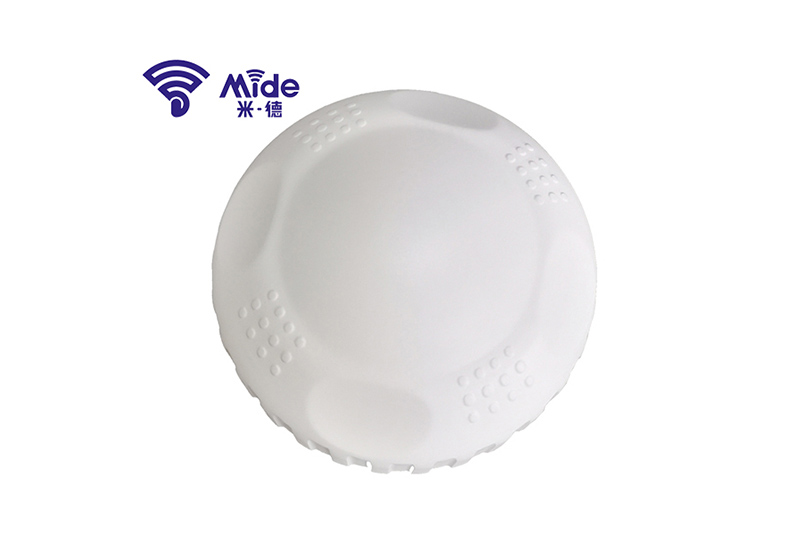

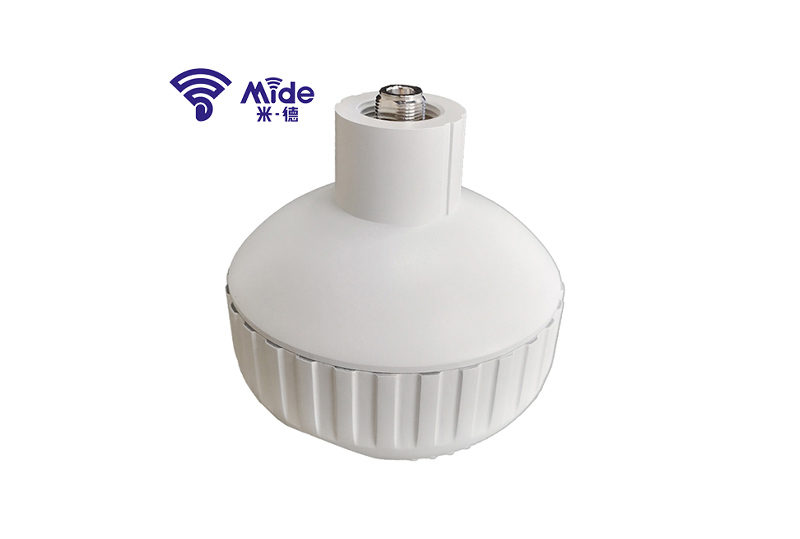

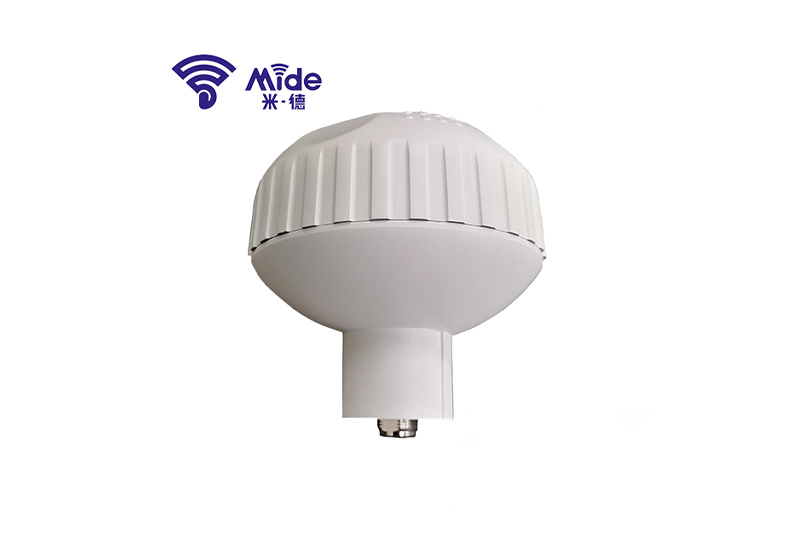

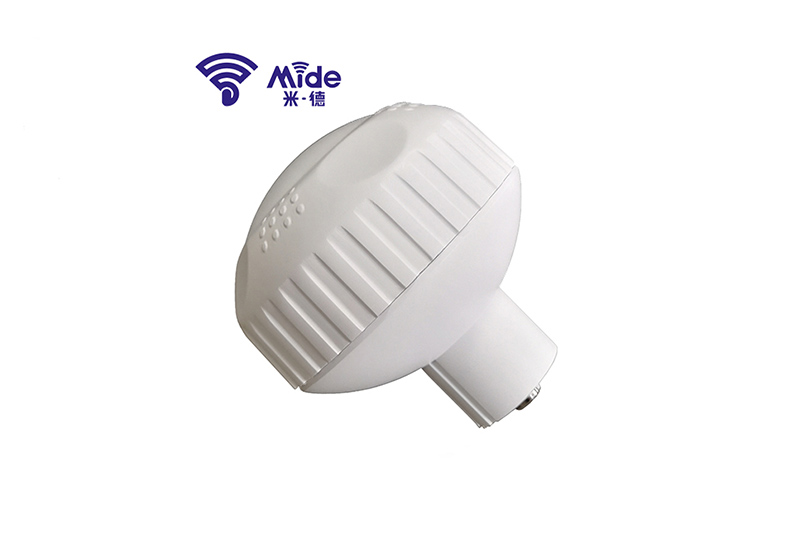

Multi-GNSS Timing Antenna LKY3301A
Multi-GNSS Timing Antenna LKY3301A
Multi-GNSS Timing Antenna LKY3301A
Multi-GNSS Timing Antenna LKY3301A
Multi-GNSS Timing Antenna LKY3301A
Product Description
LKY3301A Multi-GNSS Timing Antenna has the characteristics of high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, which can effectively meet the needs of users.
Product Features
Product Advantages
Supports 1159～1610.5MHz signal reception
High gain, UV protection, lightning protection, IP65 waterproof, easy to install
High quality, with industry leading out-of-band inhibition
Designed for safety, with transient voltage suppression and reverse polarity and electrostatic discharge (ESD) protection
Specifications
| Antenna | |
| Frequency Range（MHz） | 1159～1610.5 |
| Gain（dBi） | ≥4 |
| Antenna 10°Gain | ≥-3 |
| VSWR | ≤1.8 |
| Polarization | RHCP |
| Port Impedance（Ω） | 50Ω |
| LNA Performance | |
| LNA Gain（dB） | 34±2 |
| Noise Figure（dB） | ≤3 |
| LNA Input 1 dB Compression（dBm） | ＞-30 |
| Out-of-band Rejection (dB) | ＞50@1～1500MHz ＞40@1500～1525MHz ＞38@1785MHz |
| Operating Voltage（V） | 5±1VDC |
| Operating Current（mA） | ≤35mA@5V |
| Physical | |
| Connector Type | N-K |
| Waterproof grade | IP65 |
| Antenna size（mm） | Φ115×116mm（Without Connector） |
| Radome Material and Color | ASA Plastic, RAL9003 |
| Operating Temperature（℃） | -40-+85 ℃ |
| Storage Temperature（℃） | -55-+85 ℃ |
